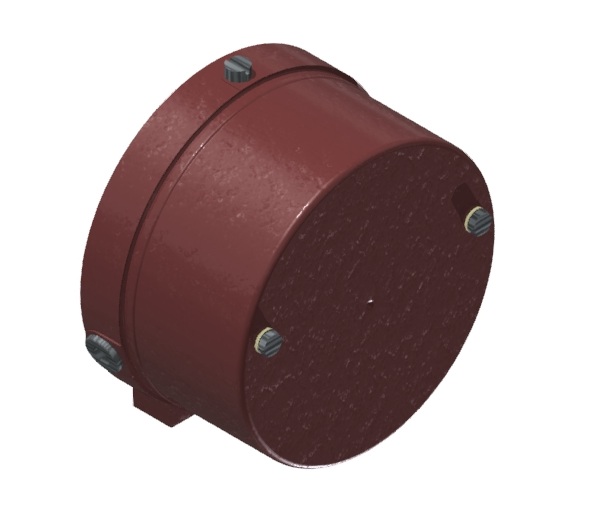

60 Series End Mount Flexmount NEMA 4 with hub seal

NEMA Frame Sizes 56C, 143TC, 145TC
Torque Ratings: 1.5 to 20 lb-ft
Base Models: 61001-535, 61003-535, 62006-535, 62010-535, 63015-535, 63020-535

Enclosure Type:

Waterproof/Dust-tight Enclosure: NEMA 4, CSA 4, IP56
Aluminum bracket and stamped steel cover
Red oxide primer paint

Specifications:

Reaction Time: 15-20 milliseconds (release and set)
AK: 4.50” Register
AJ: 5.88” Bolt Circle
Thermal Capacity: 6 HPS/Min
Maximum RPM: 3600
CSA File: #LR13814 (AC Only)
Coil insulation: Class B: 1.5 , 3, 6, 10 and 15 lb-ft (Class H Optional)
Class H: 20 lb-ft
Manual: BK4710

Design Features:

Direct acting design with no linkages to break
One moving part for longer life
Torque adjustable for specific applications
Splined hub
Spring set, electrically released
Manual release, automatic reset
Plated internal parts – RoHS compliant

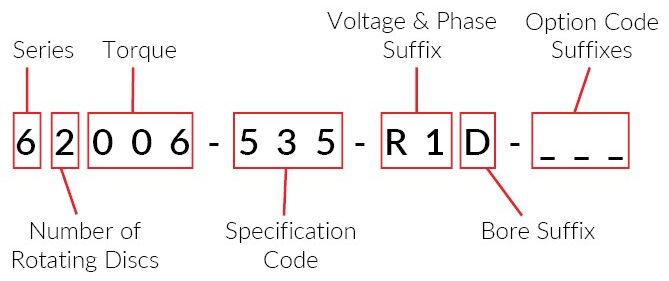

Brake Model Number Definition

Voltages:

Standard AC Voltage (single phase only)

Suffix | Voltage
Y1 | 110/220V, 50Hz
11 | 115/208-230V, 60Hz
R1 | 115/230V, 60Hz
T1 | 220/440V, 60Hz
51 | 208-230/460V, 60Hz
U1 | 230/460V, 60Hz or 190/380V, 50Hz
P1 | 575V, 60Hz

Special Voltages Available

Standard Hub Bore Sizes:

Suffix | Size | Keyway
D | 5/8″ | 3/16″ x 3/32″
F | 7/8″ | 3/16″ x 3/32″

Special Bore Sizes Available

Available Options:

Suffix | Description
A | Adapter to Next larger Frame Size
AB | Reverse Adapter
F | Foot Mounting Bracket
H | Heavy Duty Friction Disc(s)
M | Military Marine Finish
N | Non-Military (Maritime) Marine Finish
P | Tropical Protection
Q | Class H Insulation
R | Internal Space Heater
S | Stainless Steel Stationary Disc(s)
V | All Position Vertical Mounting
VO | Vertical Over Motor Mounting
VU | Vertical Under Motor Mounting
XS | Microswitch Warning

Downloads, Instructions & Parts Lists

Model 60000-535; NEMA 4, Aluminum:Steel (BK4710)

Torque (lb-ft)	Model #	Weight (lbs)	Inertia (lb-ft2)	"C"	"N"	"X" Overall length of hub & V-ring	"Xh" Hub only length	"AC"	"G"
1.5	61001-535	10	0.008	4.72	1.68	1.47	0.88	1.18	1.63
3	61003-535	10	0.008	4.72	1.68	1.47	0.88	1.18	1.63
6	62006-535	10	0.013	4.72	1.68	1.47	0.88	1.18	1.63
10	62010-535	10	0.013	4.72	1.68	1.47	0.88	1.18	1.60
15	63015-535	11	0.019	5.10	2.00	1.78	1.19	1.18	1.94
20	63020-535	11	0.019	5.10	2.00	1.78	1.19	1.18	1.94
