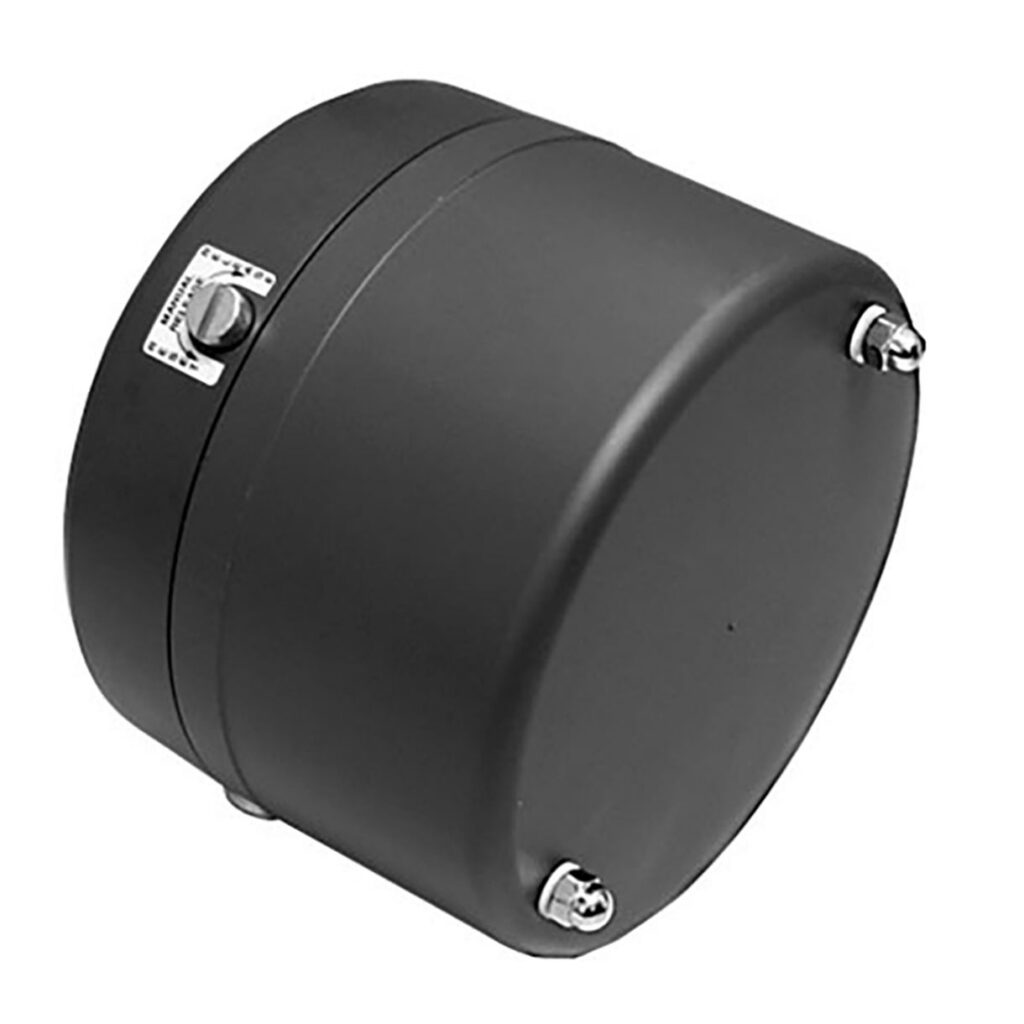

NEMA Frame Sizes 56C, 143TC, 145TC
Torque Ratings: 1.5 to 25 lb-ft

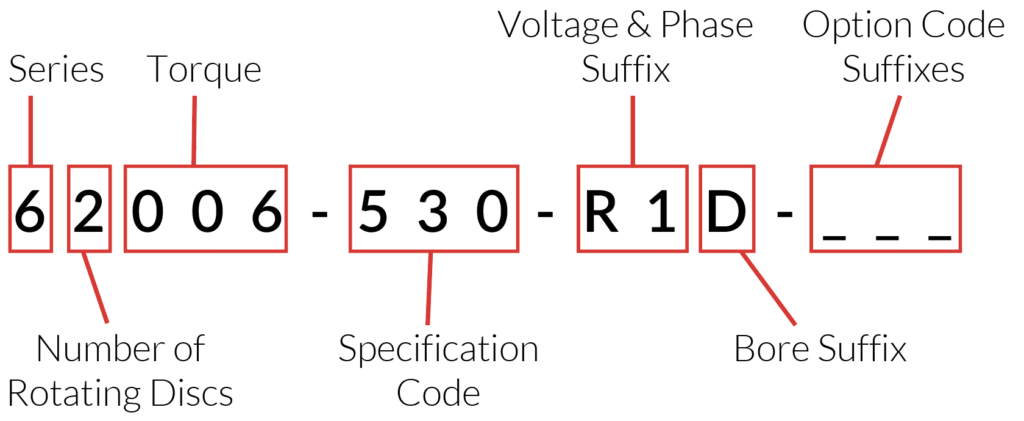

Base Models: 61001-530, 61003-530, 62006-530, 62010-530, 63015-530, 63020-530, 64025-530
Standard AC Voltage (single phase)
Suffix | Voltage
Y1 | 110/220V, 50Hz
11 | 115/208-230V, 60Hz
R1 | 115/230V, 60Hz
T1 | 220/440V, 60Hz
51 | 208-230/460V, 60Hz
U1 | 230/460V, 60Hz or 190/380V, 50Hz
P1 | 575V, 60Hz
Optional DC Voltages
Suffix | Voltage
A0 | 12V
B0 | 24V
C0 | 36V
D0 | 48V
70 | 76V
E0 | 95V
H0 | 115V
M0 | 230V
Special Voltages Available
Suffix | Size | Keyway
D | 5/8″ | 3/16″ x 3/32″
F | 7/8″ | 3/16″ x 3/32″
Special Bore Sizes Available
Suffix | Description
A | Adapter to Next larger Frame Size
AB | Reverse Adapter
F | Foot Mounting Bracket
H | Heavy Duty Friction Disc(s)
M | Military Marine Finish
N | Non-Military (Maritime) Marine Finish
P | Tropical Protection
Q | Class H Insulation
R | Internal Space Heater
S | Stainless Steel Stationary Disc(s)
T | Through Shaft
V | All Position Vertical Mounting
VO | Vertical Over Motor Mounting
VU | Vertical Under Motor Mounting
XS | Microswitch Warning
| Torque (lb-ft) | Model # | Weight (lbs) | Inertia (lb-ft2) | "C" | "N" | "X" Overall length of hub & V-ring | "Xh" Hub only length | "AC" | "G" |
|---|---|---|---|---|---|---|---|---|---|
| 1.5 | 61001-530 | 16 | 0.008 | 4.81 | 1.59 | 1.37 | 0.88 | 0.94 | 1.63 |
| 3 | 61003-530 | 16 | 0.008 | 4.81 | 1.59 | 1.37 | 0.88 | 0.94 | 1.63 |
| 6 | 62006-530 | 17 | 0.013 | 4.81 | 1.59 | 1.37 | 0.88 | 0.94 | 1.63 |
| 10 | 62010-530 | 17 | 0.013 | 4.81 | 1.59 | 1.37 | 0.88 | 0.94 | 1.63 |
| 15 | 63015-530 | 18 | 0.019 | 5.13 | 1.90 | 1.68 | 1.19 | 1.25 | 1.94 |
| 20 | 63020-530 | 18 | 0.019 | 5.13 | 1.90 | 1.68 | 1.19 | 1.25 | 1.94 |
| 25 | 64025-530 | 19 | 0.022 | 5.44 | 2.05 | 1.83 | 1.34 | 1.56 | 2.25 |
