60 Series End Mount 5600 Style with Manual Release and External Wire Outlet

Enclosure Type:

Specifications:

Reaction Time: 15-20 milliseconds (release and set)
AK: 4.50” Register
AJ: 5.88” Bolt Circle
Thermal Capacity: 6 HPS/Min
Maximum RPM: 3600
CSA File: #LR13814
Coil insulation: Class B: 1.5 – 3 lb-ft (Class H Optional)
Class H: 6 – 25 lb-ft
Mounting: 1.5 – 6 lb-ft are all-position mounting
10 – 25 lb-ft horizontal mounting only
Manual: BK4684

Design Features:

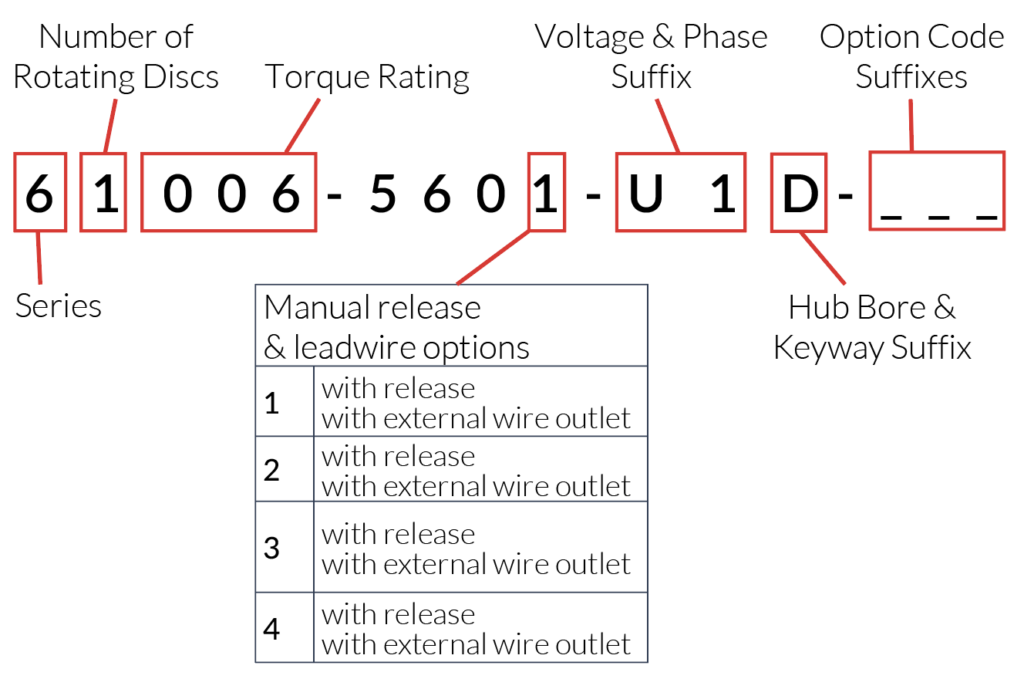

Brake Model Number Definition

Voltages:

Standard AC Voltage (single phase only)

Special Voltages Available

Standard Hub Bore Sizes:

Suffix | Size | Keyway
D | 5/8″ | 3/16″ x 3/32″
F | 7/8″ | 3/16″ x 3/32″

Special Bore Sizes Available

Available Options:

Downloads, Instructions & Parts Lists

Torque (lb-ft)	Model #	Weight (lbs)	Thermal Capacity (HPS/Min)	Inertia (lb-ft2)	Manual Release	External Wire Outlet	"C"	"AC"	"G"	"X"	"N"
1.5	61001-5601	7	6	0.006	Yes	Yes	4.01	1.50	0.31	0.81	1.00
3	61003-5601	7	6	0.006	Yes	Yes	4.01	1.50	0.31	0.81	1.00
6	61006-5601	7	6	0.006	Yes	Yes	4.01	1.50	0.31	0.81	1.00
10	62010-5601	8	6	0.011	Yes	Yes	4.01	1.50	0.31	0.81	1.00
15	62015-5601	8	6	0.011	Yes	Yes	4.01	1.50	0.31	0.81	1.00
20	63020-5601	10	6	0.015	Yes	Yes	4.39	1.88	0.69	1.18	1.38
25	63025-5601	10	6	0.015	Yes	Yes	4.39	1.88	0.69	1.18	1.38
