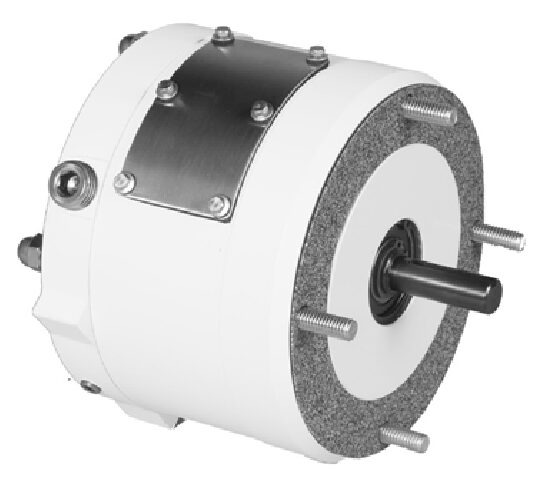

60 Series Double C Face Flexmount NEMA 4X

NEMA Frame Sizes 56C, 143TC, 145TC
Torque Ratings: 1.5 to 20 lb-ft
Base Models: 61001-5155, 61003-5155, 62006-5155, 62010-5155, 63015-5155, 63020-5155

Enclosure Type:

Waterproof/Dust tight Enclosure: NEMA 4X, CSA 4, IP56
Aluminum bracket and housing with stainless steel access caps
FDA Approved white exterior epoxy paint

Specifications:

Reaction Time: 15-20 milliseconds (release and set)
AK: 4.50” Register
AJ: 5.88” Bolt Circle
Thermal Capacity: 6 HPS/Min
Maximum RPM: 3600
CSA File: #LR13814 (AC Only)
Coil insulation: Class B: 1.5 , 3, 6, 10 and 15 lb-ft (Class H Optional)
Class H: 20 lb-ft
Manual: BK4646

Design Features:

Direct acting design with no linkages to break
One moving part for longer life
Torque adjustable for specific applications
Splined hub
Spring set, electrically released
Manual release, automatic reset
Plated internal parts – RoHS compliant

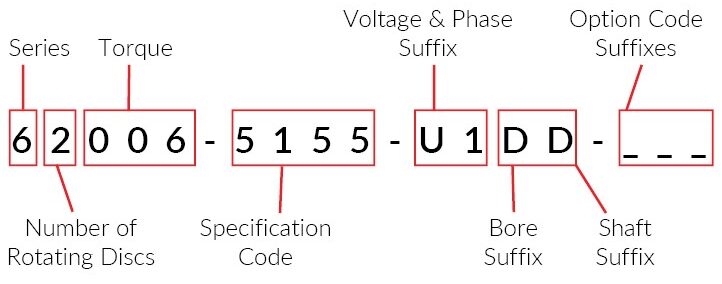

Brake Model Number Definition

Voltages:

Standard AC Voltage (single phase)

Suffix | Voltage
Y1 | 110/220V, 50Hz
11 | 115/208-230V, 60Hz
R1 | 115/230V, 60Hz
T1 | 220/440V, 60Hz
51 | 208-230/460V, 60Hz
U1 | 230/460V, 60Hz or 190/380V, 50Hz
P1 | 575V, 60Hz

Optional DC Voltages

Suffix | Voltage
A0 | 12V
B0 | 24V
C0 | 36V
D0 | 48V
70 | 76V
E0 | 95V
H0 | 115V
M0 | 230V

Special Voltages Available

Standard Hub Bore and Shaft Diameter Sizes:

Suffix | Bore | Shaft | Keyway
DD | 5/8″ | 5/8″ | 3/16″ x 3/32″
FF | 7/8″ | 7/8″ | 3/16″ x 3/32″

Special Bore and Shaft Sizes Available

Available Options:

Suffix | Description
F | Foot Mounting Bracket
H | Heavy Duty Friction Disc(s)
P | Tropical Protection
Q | Class H Insulation
R | Internal Space Heater
S | Stainless Steel Stationary Disc(s)
V | All Position Vertical Mounting
VO | Vertical Over Motor Mounting
VU | Vertical Under Motor Mounting
XS | Microswitch Warning

Downloads, Instructions & Parts Lists

Model 60000-5155; NEMA 4X (BK4646)

Torque (lb-ft)	Model #	Weight (lbs)	Inertia (lb-ft2)	"C"	"X" 1-Piece Shaft**	"X" 2-Piece Shaft**	"AC"
1.5	61001-5155	11	0.006	4.94	0.81	0.88	0.59
3	61003-5155	11	0.006	4.94	0.81	0.88	0.59
6	62006-5155	12	0.010	4.94	0.81	0.88	0.59
10	62010-5155	12	0.010	4.94	0.81	-	0.59
15	63015-5155	13	0.014	5.31	1.19	-	0.87
20	63020-5155	13	0.014	5.31	1.19	-	0.87
