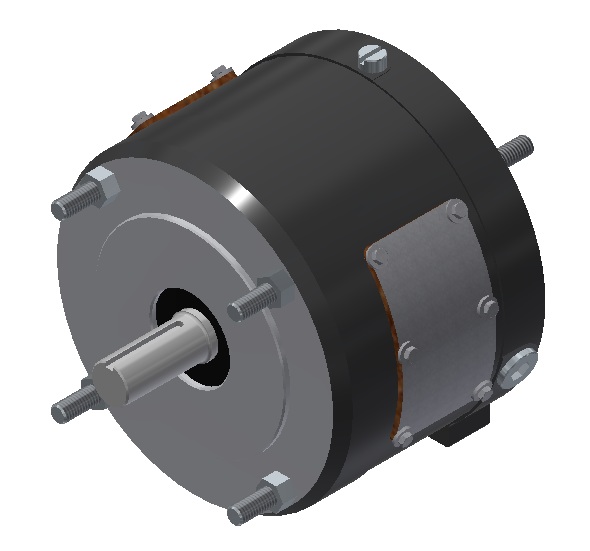

60 Series Double C Face Flexmount NEMA 4

NEMA Frame Sizes 56C, 143TC, 145TC
Torque Ratings: 1.5 to 20 lb-ft
Base Models: 61001-5153, 61003-5153, 61006-5153, 62006-5153, 62010-5153, 63010-5153, 63015-5153, 63020-5153

  • Waterproof/Dust tight Enclosure: NEMA 4, CSA 4, IP56
  • Aluminum bracket and housing with stainless steel access caps
  • Gray enamel exterior paint
  • Reaction Time: 15-20 milliseconds (release and set)
  • AK: 4.50” Register
  • AJ: 5.88” Bolt Circle
  • Thermal Capacity: 6 HPS/Min
  • Maximum RPM: 3600
  • CSA File: #LR13814 (AC Only)
  • Coil insulation: Class B: 1.5 , 3, 6, 10 and 15 lb-ft  (Class H Optional)
  • Class H: 20 lb-ft
  • Manual: BK4652
  • Direct acting design with no linkages to break
  • One moving part for longer life
  • Torque adjustable for specific applications
  • Splined hub
  • Spring set, electrically released
  • Manual release, automatic reset
  • Plated internal parts – RoHS compliant

Standard AC Voltage (single phase)

Suffix | Voltage
Y1 | 110/220V, 50Hz
11 | 115/208-230V, 60Hz
R1 | 115/230V, 60Hz
T1 | 220/440V, 60Hz
51 | 208-230/460V, 60Hz
U1 | 230/460V, 60Hz or 190/380V, 50Hz
P1 | 575V, 60Hz

Optional DC Voltages

Suffix | Voltage
A0 | 12V
B0 | 24V
C0 | 36V
D0 | 48V
70 | 76V
E0 | 95V
H0 | 115V
M0 | 230V

Special Voltages Available

Suffix | Bore | Shaft | Keyway
DD | 5/8″ | 5/8″ | 3/16″ x 3/32″
FF | 7/8″ | 7/8″ | 3/16″ x 3/32″

Special Bore and Shaft Sizes Available

Suffix | Description
F | Foot Mounting Bracket
H | Heavy Duty Friction Disc(s)
M | Military Marine Finish
N | Non-Military (Maritime) Marine Finish
P | Tropical Protection
Q | Class H Insulation
R | Internal Space Heater
S | Stainless Steel Stationary Disc(s)
V | All Position Vertical Mounting
VO | Vertical Over Motor Mounting
VU | Vertical Under Motor Mounting
XS | Microswitch Warning

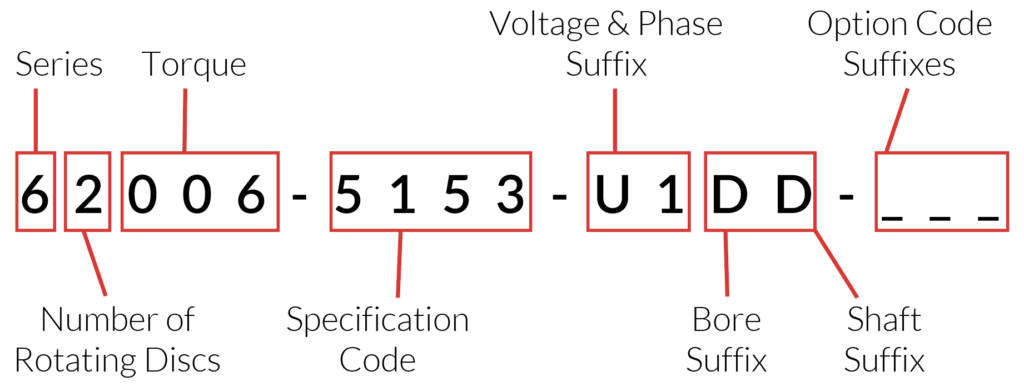

Model 60000-5153; NEMA 4 (BK4652)

Torque (lb-ft)Model #Weight (lbs)Inertia (lb-ft2)"C""X" 1-Piece Shaft**"X" 2-Piece Shaft**"AC"
1.561001-5153110.0064.940.810.880.59
361003-5153110.0064.940.810.880.59
662006-5153120.0104.940.810.880.59
1062010-5153120.0104.940.81-0.59
1563015-5153130.0145.311.19-0.87
2063020-5153130.0145.311.19-0.87
